Williams File : 2012

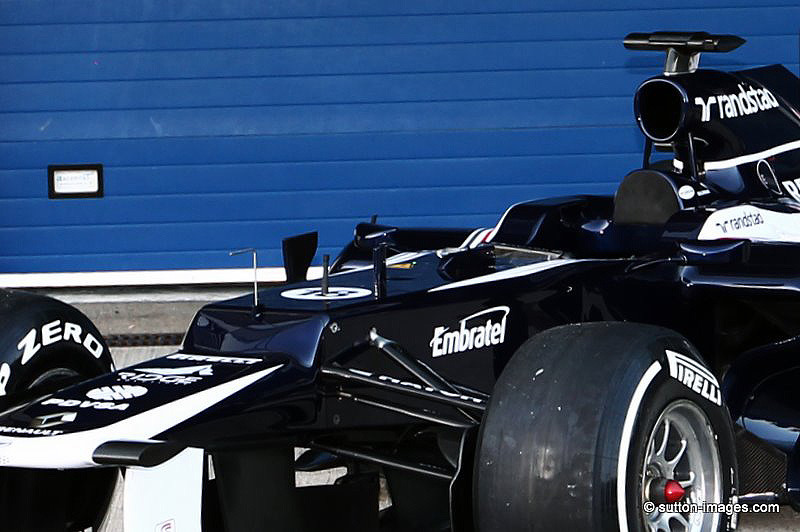

FW34 Technical Specifications

• Chassis construction: Monocoque construction Laminated from carbon epoxy and honeycomb composite structure, surpassing FIA impact and strength requirements
• Front suspension: Carbon fibre double wishbone arrangement, with composite toelink and pushrod activated springs and anti-roll bar
• Rear suspension: Double wishbone and pullrod activated springs and anti-roll bar
• Transmission: Williams F1 seven speed seamless sequential semi-automatic shift plus reverse gear.
• Clutch: Carbon multi-plate
• Dampers: Williams F1
• Wheels: RAYS forged magnesium
• Tyres: Pirelli
• Fronts: 325mm wide,
• Rears: 375mm wide
• Brake system: AP 6 piston callipers all round, carbon discs and pads
• Steering: Williams F1 power assisted rack and pinion
• Fuel system: ATL Kevlar-reinforced rubber bladder
• Electronic systems: FIA SECU standard electronic control unit
• Cooling system: Aluminium Oil, Water, KERS, and gearbox radiators
• Cockpit: Driver six point safety harness with 75mm shoulder straps & HANS system, removable anatomically formed carbon fibre seat covered in Alcantara

Motive power:

• Motive power: Renault 2.4L V8, 90° V angle engine, pneumatic valve train.
• Fuel and lubricants: Total.
• High energy inductive ignition system.
• Engine materials (include block and pistons): Aluminium alloy, crankshaft in Nitrided alloy steel with tungsten alloy counterweights, connecting rods in titanium alloy.

Dimensions & weight:

• Weight: FIA Minimum
• Wheelbase: FIA Maximum
• Overall length: 5000mm
• Overall height: 950mm
• Overall width: 1800mm

Pastor Maldonado, #18

Team	Williams
Nationality	Venezuelan
Podiums	0
Points	1
Grand Prix entered	19
World Championships	0
Highest race finish	10 (x1)
Highest grid position	7 (x1)
Date of Birth	09/03/1985
Place of Birth	Maracay

Bruno Senna, #19

Team	Williams
Nationality	Brazilian
Podiums	0
Points	2
Grand Prix entered	26
World Championships	0
Highest race finish	9 (x1)
Highest grid position	7 (x1)
Date of Birth	15/10/1983
Place of Birth	Sao Paulo
